The Steeple Run School Frost Tube

On November 19, 2008, Mr. Lopatka helped Ms. Kouri's Highlands School Students install the first Frost Tube in Illinois.  One week later, Mr. Lopatka installed one at the Morton Arboretum GLOBE study site. On December 3rd,  He helped the students of Steeple Run install one at their Weather station.  There are 80 sites in the state of Alaska, where they are carefully monitoring the permafrost there.  The Frost tube allows students to measure the depth of the frost during the winter months.  The CPVC pipe extends 85 centimeters into the ground. There is a flexible sealed plastic tube with blue died water, that will turn clear when frozen, making it easy for students to monitor the depth of the frost.
frost-tube crop.jpg (965119 bytes) frost-tubecrop.jpg (538012 bytes)

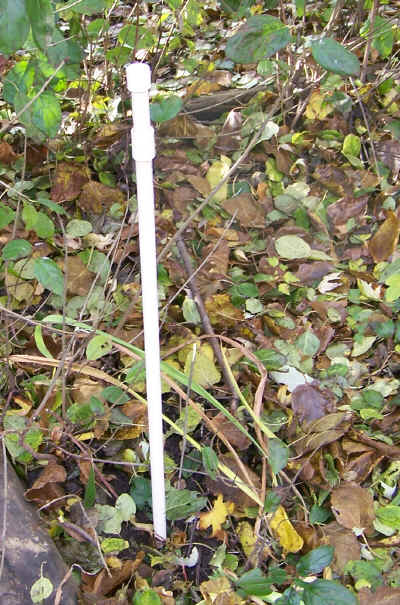

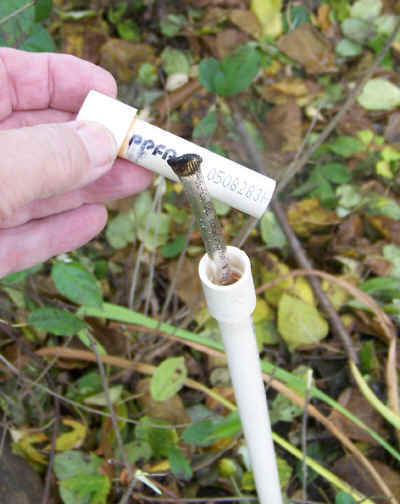

I installed this Frost Tube in my garden.  The CPVC pipe has a removable cap, so that students can remove the tube and measure the depth of the ice.

You can click on the images below to see the full resolution.  Use the back button to return to this page.

08-12-03Frost 001.jpg (948196 bytes)

The students are holding the following tools: (Left to Right) Frost Tube, pipe wrench, hand trowel, Infrared Surface Thermometer and a coffee container of soil.

08-12-03Frost 002.jpg (1192932 bytes)

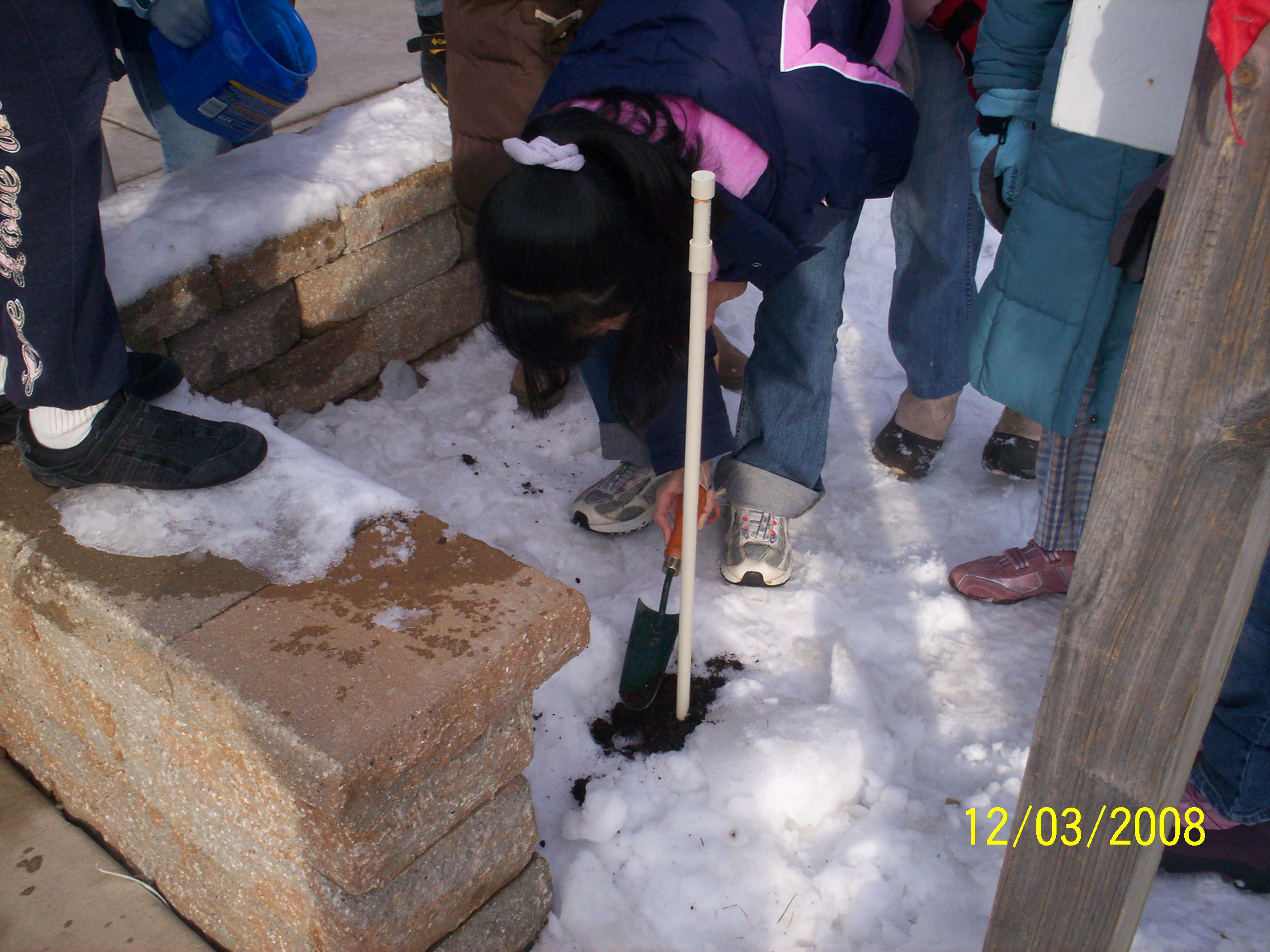

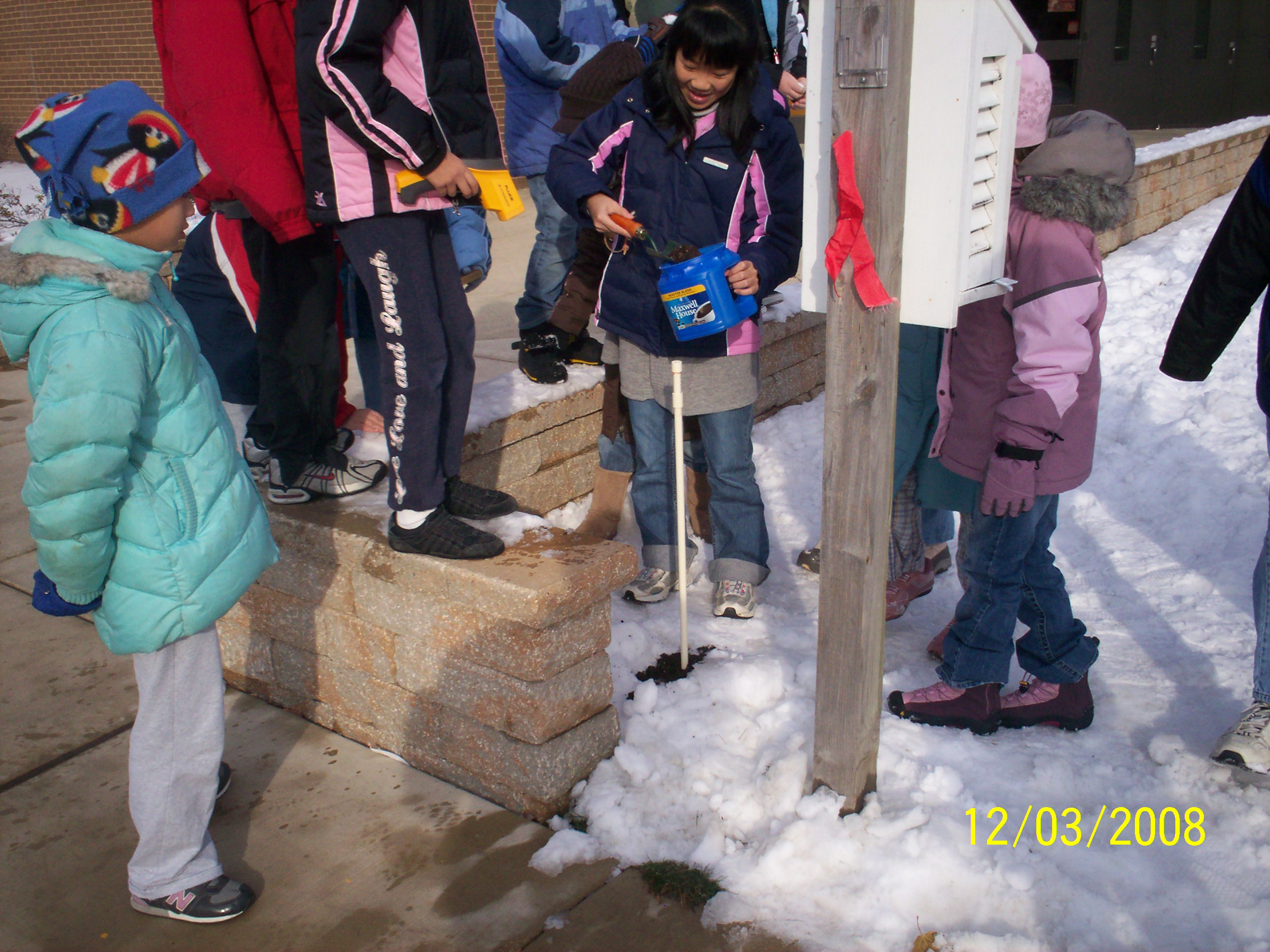

Mr. Lopatka pounded a steel pipe 85 centimeters into the ground, then used the pipe wrench to remove the pipe, leaving a path for the CPCV pipe.  Then we packed soil around the pipe.

08-12-03Frost 003.jpg (1149882 bytes) 08-12-03Frost 004.jpg (1131614 bytes)
08-12-03Frost 005.jpg (1099674 bytes) 08-12-03Frost 006.jpg (1121982 bytes)

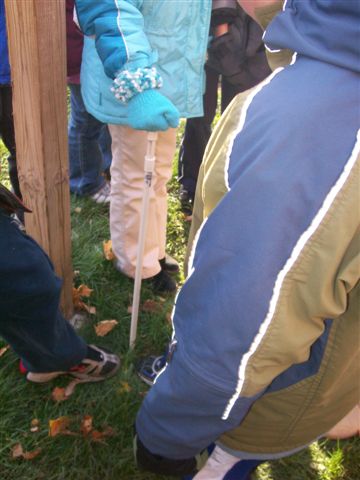

These pictures are from Highlands School



Fall Bass Release 08 011.jpg (55735 bytes)

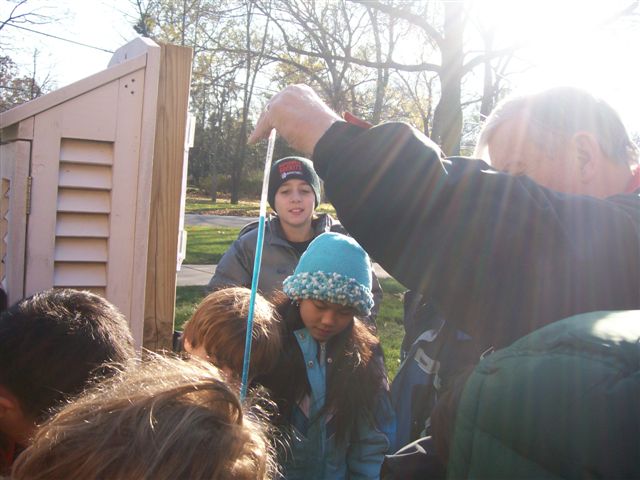

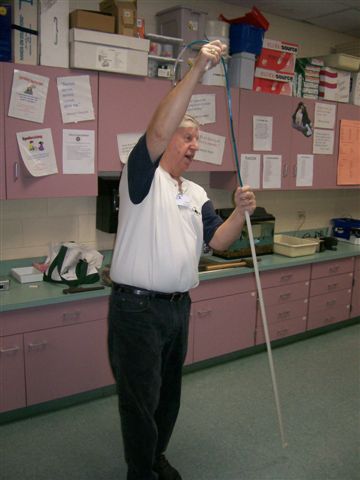

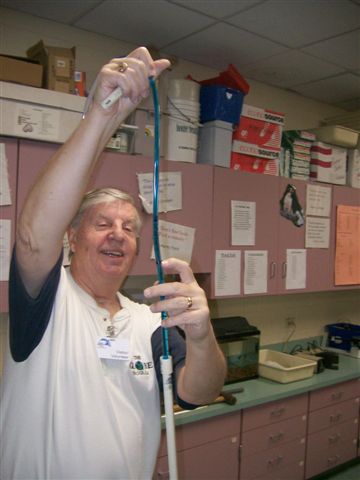

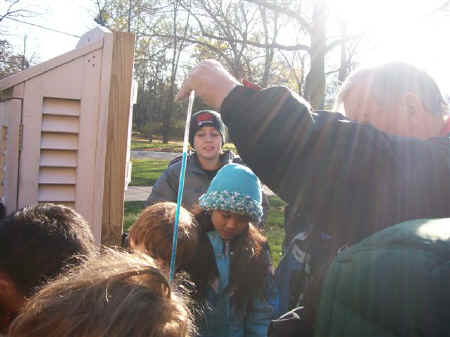

This is the tube that has the blue dyed water that we check for frost.

Click here to learn more about the Frost tube at Highlands School and the ones in Alaska.
